常用16MHZ晶振型号一览表

作者: 扬兴科技 日期:2021-10-20 浏览量:

常用16MHZ晶振型号/封装大全

图片 型号 类型 品牌 频率 工作温度 频差 电压/负载 封装尺寸 规格书下
16mhz晶振 YSX211SL 无源贴片晶振 YXC 16MHZ -20℃~+70℃
-40℃~+85℃
±10PPM
±20PPM
9PF
12PF
15PF
2.0x1.6mm (2016) YSX211SL无源晶振

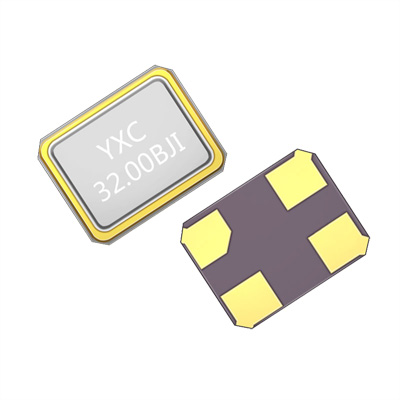

16mhz无源晶振 YSX221SL 无源贴片晶振 YXC 16MHZ -20℃~+70℃
-40℃~+85℃
±10PPM
±20PPM
9PF
12PF
2.5*2.0mm (2520) YSX221SL贴片晶振

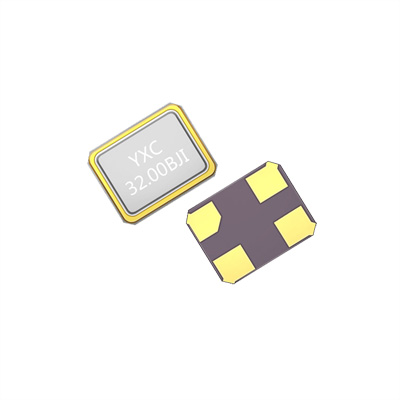

16mhz贴片晶振 YSX321SL 无源贴片晶振 YXC 16MHZ -20℃~+70℃
-40℃~+85℃
±10PPM
±20PPM
8PF
9PF
12pF
18PF
3.2*2.5mm (3225) YSX321SL无源晶振

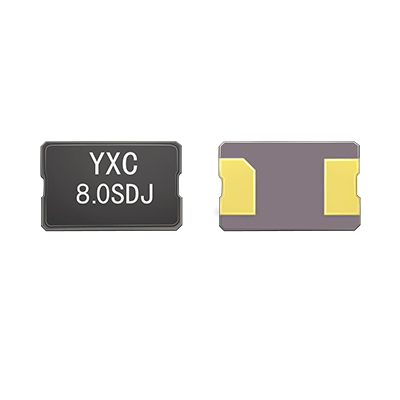

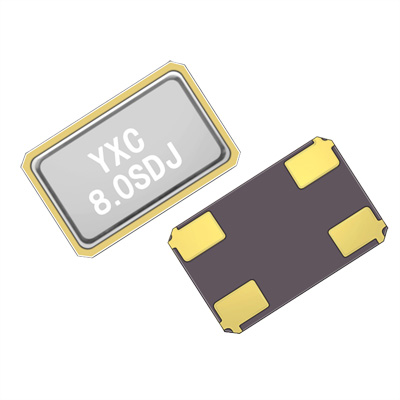

16mhz无源晶振 YSX531SL 无源贴片晶振 YXC 16MHZ -20℃~+70℃
-40℃~+85℃
±10PPM
±20PPM
10PF
20PF
5.0*3.2mm (5032) YSX531SL晶振
16mhz陶瓷晶振 YSX530GA 陶瓷晶振 YXC 16MHZ -40℃~+85℃ ±10PPM 20PF 5.0*3.2mm (5032) YSX530GA陶瓷晶振
16mhz贴片晶振 HC-49SMD 无源贴片晶振 YXC 16MHZ -20℃~+70℃
-40℃~+85℃
±10PPM
±20PPM
12PF
18PF
20PF
11.4 x 4.8 x 3.8 mm HC-49SMD贴片晶振

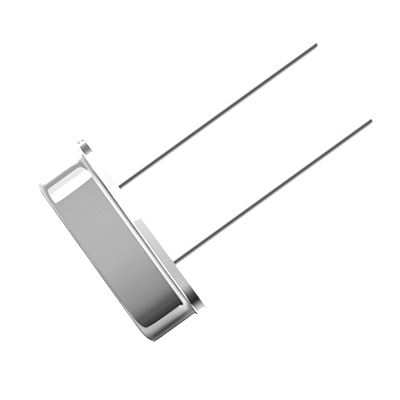

16mhz直插晶振 HC-49US 无源直插晶振 YXC 16MHZ -20℃~+70℃
-40℃~+85℃
±10PPM
±20PPM
12PF
16PF
20PF
11.5 x 4.5 x 3.68mm HC-49US直插晶振

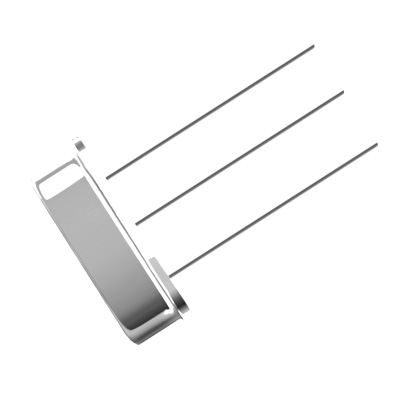

16mhz直插晶振 HC-49US3 无源直插晶振 YXC 16MHZ -20℃~+70℃ ±20PPM 20PF 11.5x5.0mm HC-49US3直插晶振
16mhz音叉晶振 YT-26M 音叉谐振器 YXC 16MHZ -20℃~+70℃ ±20PPM 20PF 2.0*6.0mm (2060) YT-26M音叉谐振器
16mhz音叉晶振 YT-38M 音叉谐振器 YXC 16MHZ -20℃~+70℃ ±20PPM 20PF 3.0*8.0mm (3080) YT-38M音叉谐振器
16mhz有源晶振 YSO321SR 有源贴片晶振 YXC 16MHZ -40℃~+85℃ ±50PPM 3.3V 3.2*2.5mm (3225) YSO321SR 有源晶振

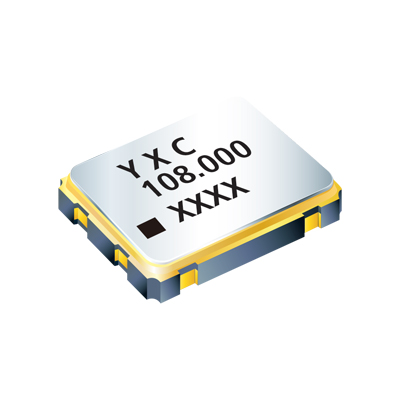

16mhz有源晶振 YSO751SR 有源贴片晶振 YXC 16MHZ -20℃~+70℃ ±20PPM 3.3V 7.0*5.0mm (7050) YSO751SR贴片晶振
16mhz表贴晶振 YSO532ST 有源表贴晶振 YXC 16MHZ -40℃~+85℃ ±25PPM 2.25-5.5V 5.0*3.2mm (5032) YSO532ST表贴晶振
16mhz表贴晶振 YSO752ST 有源表贴晶振 YXC 16MHZ -40℃~+85℃ ±25PPM 2.25V-5.5V 7.0*5.0mm (7050) YSO752ST表贴晶振
16mhz插件晶振 YSO1212SR 有源直插晶振 YXC 16MHZ -20℃~+70℃ ±25PPM 3.3V 12.7x12.7mm YSO1212SR直插晶振
16mhz插件晶振 YSO1512SR 有源直插晶振 YXC 16MHZ -20℃~+70℃ ±25PPM 3.3V-5V 20.4x12.8mm YSO1512SR直插晶振
16mhz可编程晶振 YSO680PR 可编程晶振 YXC 16MHZ -40℃~+85℃ ±20PPM 3.3V 3.2*2.5mm (3225) YSO680PR可编程晶振
16mhz可编程晶振 YSO8008MR MEMS硅晶振 YXC 16MHZ -40℃~+85℃ ±20PPM 3.3V 2.0x1.6mm (2016)
2.5*2.0mm (2520)
5.0*3.2mm (5032)
7.0*5.0mm (7050)
YSO8008MR可编程晶振
无源晶振16m TSX-3225 无源贴片晶振 EPSON 16MHZ -40℃~+85℃ ±10PPM 9PF
12PF
18PF
3.2*2.5mm (3225) TSX-3225无源贴片晶振
贴片晶振16m FA-128 无源贴片晶振 EPSON 16MHZ -40℃~+85℃ ±10PPM 8PF
9PF
2.0x1.6mm (2016) FA-128无源晶振
无源晶振16m FA-20H 无源贴片晶振 EPSON 16MHZ -40℃~+85℃ ±10PPM
±30PPM
±50PPM
8PF
9PF
10PF
12PF
16PF
20PF
2.5*2.0mm (2520) FA-20H贴片晶振
晶振16m SG-210STF 有源贴片晶振 EPSON 16MHZ -40℃~+85℃ ±50PPM 1.6V~3.6V 2.5*2.0mm (2520) SG-210STF晶振型号
有源晶振16m SG5032CAN 有源贴片晶振 EPSON 16MHZ -40℃~+85℃ ±50PPM 1.6~3.6V 5.0*3.2mm (5032) SG5032CAN晶振封装

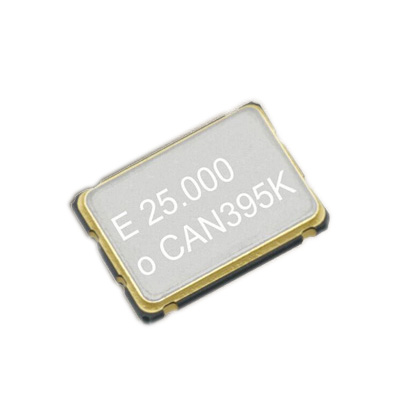

16mhz有源贴片晶振 SG7050CAN 有源贴片晶振 EPSON 16MHZ -40℃~+85℃ ±50PPM 1.6~3.6V 7.0*5.0mm (7050) SG7050CAN晶振型号
16mhz有源贴片晶振 SG7050CCN 有源贴片晶振 EPSON 16MHZ -40℃~+85℃ ±50PPM 4.5~5.5V 7.0*5.0mm (7050) SG7050CCN晶振封装
16mhz硅晶振 SIT8008 MEMS硅晶振 SiTime 16MHZ -40℃~+85℃ ±20PPM
±25PPM
3.3V 2.5*2.0mm (2520)
3.2*2.5mm (3225)
5.0*3.2mm (5032)
7.0*5.0mm (7050)
SIT8008晶振封装

推荐相关阅读可以点击查看YXC扬兴官网《12mhz晶振型号一览表》)
